CNC Hydraulic Press

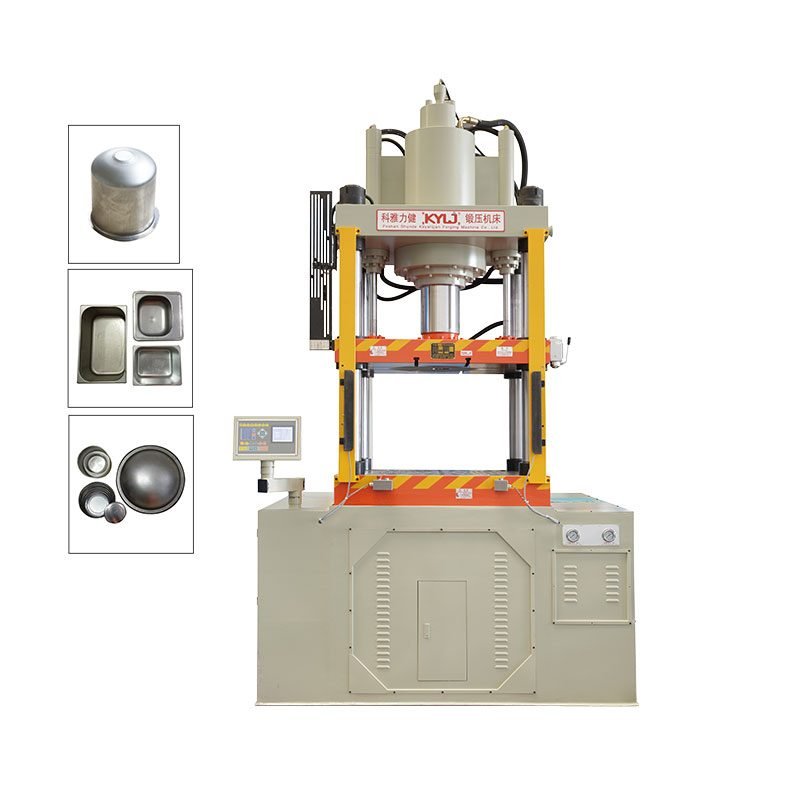

Built for precision deep drawing, this hydraulic press is ideal for manufacturing stainless steel sinks, wash basins, kitchenware, and other metal products. Available in 75–500 tons, it offers reliable performance, flexible customization, and high production efficiency.
Product Description
Built for precision deep drawing, this hydraulic press is ideal for manufacturing stainless steel sinks, wash basins, kitchenware, and other metal products. Available in 75–500 tons, it offers reliable performance, flexible customization, and high production efficiency.
Why Choose KEYALIJIAN?
More Than a Machine Supplier
At KEYALIJIAN, we provide complete hydraulic press solutions from concept to production.
Engineering Consultation
Our engineers analyze your product and recommend the right forming process.
Custom Machine Design
Every hydraulic press is designed according to your product requirements.
Complete Support
From installation and commissioning to operator training and after-sales service, we support your production every step of the way.
| Technical Specifications | Unit | 75T | 100T | 120T | 160T | 200T | 250T | 300T | 400T |
|---|---|---|---|---|---|---|---|---|---|
| Master Cylinder Pressure (KN) | (KN) | 500 | 650 | 800 | 1100 | 1500 | 1700 | 2000 | 2500 |
| Master Cylinder Stroke | (mm) | 400 | 450 | 460 | 560 | 560 | 600 | 600 | 600 |
| Master Cylinder Operating Speed | (mm/s) | 15~30 | 15~30 | 15~30 | 10~30 | 17~35 | 16~33 | 16~33 | 30 Or 12 |
| Lower Cylinder Pressure | (KN) | 250 | 350 | 400 | 500 | 500 | 800 | 1000 | 1500 |
| Lower Cylinder Stroke | (mm) | 260 | 280 | 260 | 300 | 300 | 320 | 300 | 320 |
| Effective Area of Work Table (L.R.×F.B.) | (mm) | 520*520 | 580*580 | 620*620 | 750*750 | 700*880 | 700*880 | 835*880 | 975*1050 |
| Effective Area of Edge Press Work Table (L.R.×F.B.) | (mm) | 350*350 | 380*380 | 450*450 | 480*480 | 500*500 | 500*500 | 660*660 | 880*710 |
| Maximum Opening of Movable Beam and Work Table | (mm) | 700 | 800 | 760 | 900 | 938 | 1000 | 1000 | 1120 |
| Total Weight | (Kg) | 2300 | 3000 | 3500 | 6000 | 6500 | 6900 | 7500 | 11200 |
| Total Motor Power | (Kw) | 7.5 | 11 | 11 | 22 | 22 | 30 | 30 | 30 |
| Overall imensions (L×W×H) | (mm) | 1550* 1000* 2300 | 1550* 1050* 2500 | 1550* 1100* 2600 | 1860* 1250* 2500 | 2020* 1600* 3350 | 2020* 1600* 3350 | 2100* 1600* 3650 | 2320* 1700* 4030 |
